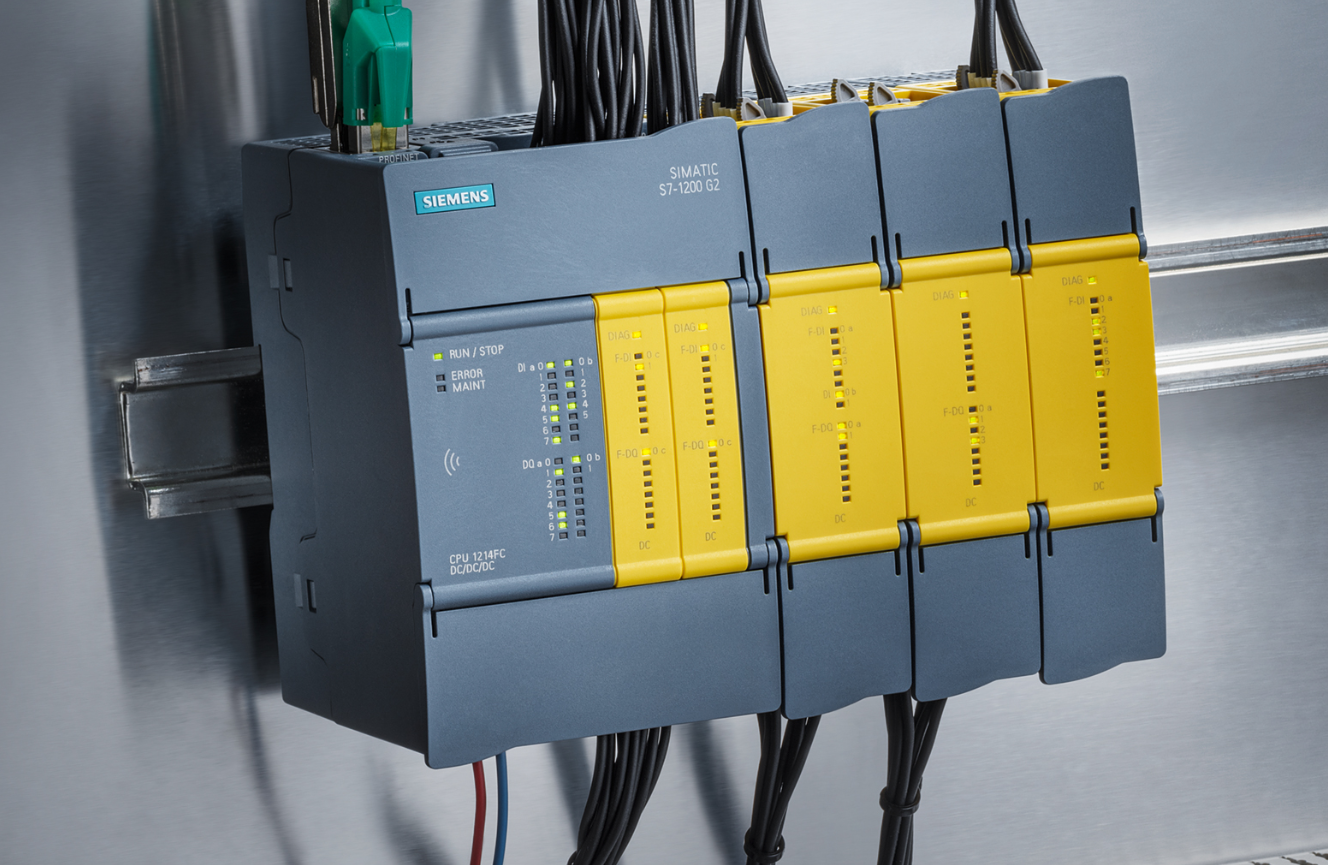

Khám phá bộ điều khiển mới S7-1200G2



Dòng S7-1200 G2 được lập trình trên TIA Portal V20 (Step 7 Basic/professional), tuy phần cứng có khác biệt so với S7-1200 nhưng chương trình chuyển đỗi dễ dàng sang cpu mới.

S7-1200 G2 Youtube: https://youtu.be/nnLyLckRn5I

S7-1200 G2 slides: https://drive.google.com/file/d/10NDXNto5y48-m-HKhqRmJJ2Hyj-C7Waj/view?usp=sharing

Factory Automation overview: https://drive.google.com/file/d/1BuxjtdptlCjDVOKw6CBKVtVAFrvB6Q9U/view?usp=drive_link

Basic technical informatiin: https://docs.google.com/document/d/1KkQrWpEn1NC6-gT9JBtF_i66PPFuhRZa/edit?usp=sharing&ouid=105804531562782163041&rtpof=true&sd=true



TIA Portal V20 slides: https://drive.google.com/file/d/1y6rzsKJlAzlGhlP9zG6quSW9wibrb0st/view?usp=sharing

TIA Portal V20 software: https://drive.google.com/file/d/1cz3bX86GMQOVSTnAKcuWBtJrBmhPZLPz/view?usp=sharing

Mã số đặt hàng:

CPU type		Article number	Description
CPU 1212C	DC/DC/DC	6ES7212-1AG50-0XB0	Compact CPU 1212C onboard I/O: 8x DI 24 V DC; 6x DQ; memory: program 150 kB data: 500 kB
	AC/DC/RLY	6ES7212-1BG50-0XB0
	DC/DC/RLY	6ES7212-1HG50-0XB0
CPU 1212FC	DC/DC/DC	6ES7212-1AF50-0XB0	Failsafe Compact CPU 1212FC onboard I/O: 8x DI 24 V DC; 6x DQ; memory: program 200 kB data: 500 kB
	DC/DC/RLY	6ES7212-1HF50-0XB0
CPU 1214C	DC/DC/DC	6ES7214-1AH50-0XB0	Compact CPU 1214C onboard I/O: 14x DI 24 V DC; 10x DQ; memory: program 250 kB data: 750 kB K
	AC/DC/RLY	6ES7214-1BH50-0XB0
	DC/DC/RLY	6ES7214-1HH50-0XB0
CPU 1214FC	DC/DC/DC	6ES7214-1AF50-0XB0	Failsafe Compact CPU 1214FC onboard I/O: 14x DI 24 V DC; 10x DQ; memory: program 300 kB data: 750 kB
	DC/DC/RLY	6ES7214-1HF50-0XB0
Digital Signal modules		Article number
SM 1221	DI 16x 24 V DC	6ES7221-1BH50-0XB0
SM 1222	DQ 16x RLY 2.0 A	6ES7222-5HH50-0XB0
	DQ 16x 24 V DC 0.5A	6ES7222-5BH50-0XB0
SM 1223	DI 8x 24 V DC/ DQ 8x RLY 2.0 A	6ES7223-5PH50-0XB0
	DI 8x 24 V DC/ DQ 8x 24 V DC 0.5A	6ES7223-5BH50-0XB0
Digital Signal boards		Article number
SB 1221	DI 8x 24 V DC Sink/Source 100 kHz	6ES7221-3BF50-0XB0
SB 1222	DQ 8x 24 V DC 100 kHz	6ES7222-5BF50-0XB0
SB 1223	DI 4x 24 V DC, DQ 4x 24 V DC, 100 kHz	6ES7223-7BF50-0XB0
	DI 4x 5 V DC, DQ 4x 5 V DC, 200 kHz	6ES7223-7AF50-0XB0

(30/3/2025)
